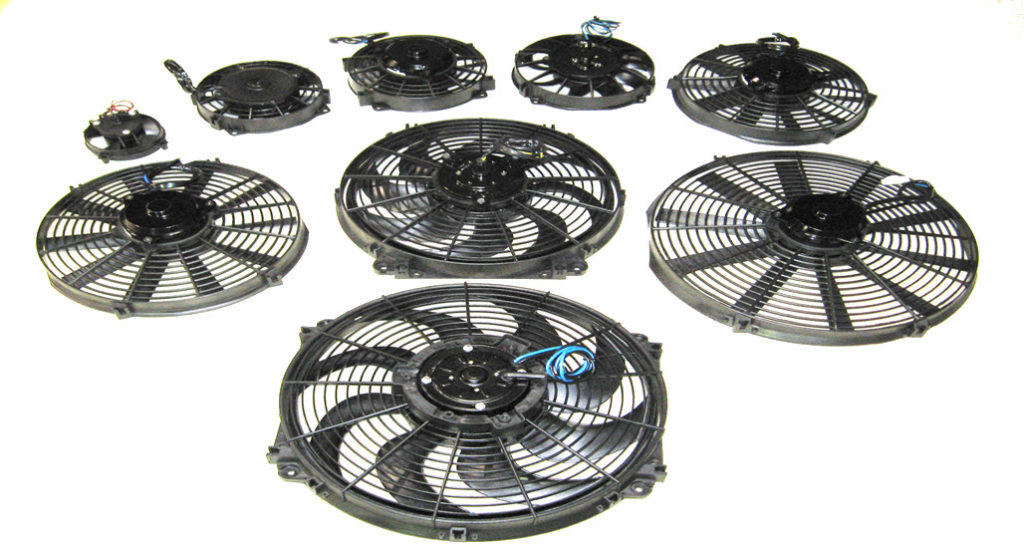

TURBINE ELECTRIC FANS can be used on most motorcycles, small utility vehicles, automobiles and pickups, etc. Sizes range from 4″ to 16″ diameters.
| MODEL # | FAN DIAMETER | CFM[1] | VOLTS[2] | AMPS | ASSEMBLED DEPTH |
|---|---|---|---|---|---|
| 2000-4 | 4.0″ | 150 | 12 | 3 | 4.25″ |
| 2000-6 | 6.0″ | 330 | 12 | 6 | 2.0″ |
| 2000-8 | 8.0″ | 375 | 12 | 5 | 3.25″ |
| 2000-10 | 10.0″ | 850 | 12 | 9 | 3.25″ |
| 2000-12 | 12.0″ | 1150 | 12 | 9 | 3.25″ |
| 2500-14 | 13.0″ | 1350 | 12 | 9 | 3.34″ |
| 2000-16 | 16.0″ | 1750 | 12 | 14 | 4.0″ |
| 2500-16 | 15.5″ | 2320 | 12 | 18 | 4.0″ |
| 2600-16 | 16.0″ | 2000 | 12 | 23 | 2.6″ |
